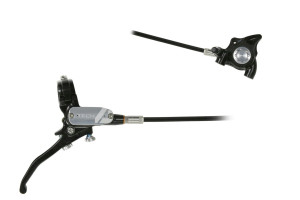

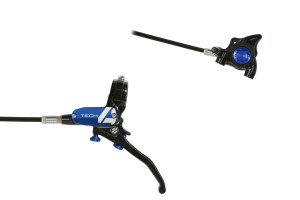

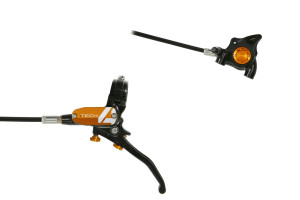

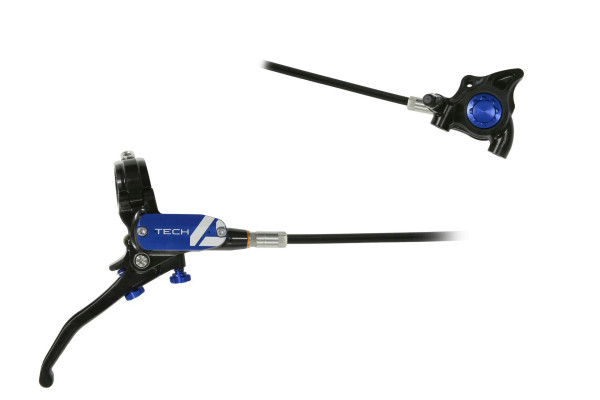

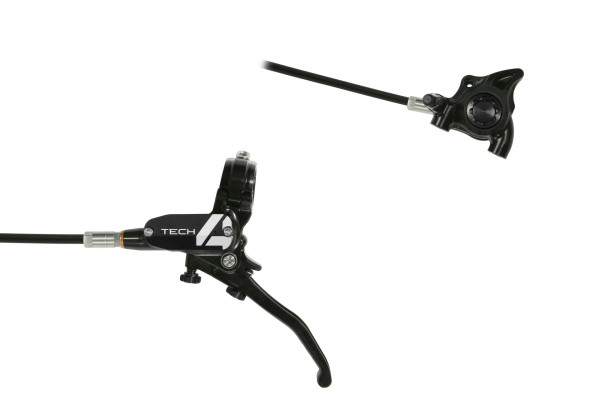

Tech 4 X2 FM Brake

Drawing from our extensive 25-year background in hydraulic brake system creation, the Tech 4 X2 represents a leap forward. Incorporating fresh internal seals to minimize friction and employing roller bearings for the pivot, we've succeeded in reducing the spring rate. This results in a smoother lever action, reducing rider fatigue while maintaining our celebrated responsiveness and modulation. Coupled with the latest X2 Postmount or Flatmount caliper, it becomes a nimble, customizable brake.

Features:

• Increased power versus Tech 3.
• Lever shape updated to provide a more ergonomic shape orientated to provide the best mechanical advantage during braking.
• Hinged clamp reducing weight and to improve ergonomics.
• Tool free bite point and reach adjustments.
• Hybrid piston design.
• Rigid CNC'd one piece caliper.
• Compatible with a wider range of current shifter options.
• Complete brake available in Black or Silver with colour accent options of; Black, silver, purple, red, blue, or orange.
• Choose either standard or braided hose (braided hose is an extra cost).
• 30% pressure increase compared with the Tech 3 brake.
• Reservoir area increased to lower overall stack height.
• Shifter integration has been improved and now offers 30° of angle adjustment as well as neater packaging and compatibility with the latest shifters. Lateral adjustment on both sides of the master // cylinder is also possible to give a wide range of lever position options.
• Hybrid-style pistons that allow smoother movement and require less maintenance, and a phenolic insert to manage heat transfer during extreme use.
• The Tech 4 retains the tool-free bite point and reach adjustments from the Tech 3.
• All Tech 4 brakes are supplied with new racing compound pads.
• Maximum Rotor thickness for X2 caliper 2.3mm.

Part number: T4X2FNR, T4X2FNL, T4X2FBR, T4X2FBL, T4X2FCR, T4X2FCL, T4X2FPUR, T4X2FPUL, T4X2FRR, T4X2FRL, T4X2FSR, T4X2FSL, T4X2FZSNR, T4X2FZSNL, T4X2FZSBR, T4X2FZSBL, T4X2FZSCR, T4X2FZSCL, T4X2FZSPUR, T4X2FZSPUL, T4X2FZSRR, T4X2FZSRL, T4X2FZSSR, T4X2FZSSR, T4X2FAL, T4X2FAR Barcode: 5056454909852, 5056454909845, 5056454909777, 5056454909760, 5056454909814, 5056454909807, 5056454909890, 5056454909883, 5056454909937, 5056454909920, 5056454909975, 5056454909968, 5056454910094, 5056454910087, 5056454910018, 5056454910001, 5056454910056, 5056454910049, 5056454910131, 5056454910124, 5056454910179, 5056454910162, 5056454910216, 5056454910209, 5056454980172, 5056454980189, 5056454983050, 5056454983043 Product code: HOP BS T4X2FM

Flatmount Caliper Mount options:

• Mount Z: Required to fit the X2 FM caliper onto Front Flatmount standard and use a Ø160 disc – Front Flatmount standard is typically found on road/gravel/CX forks
• Mount Y: Required to fit the X2 FM caliper onto Rear Flatmount standard using Ø160 disc – Rear Flatmount std is typically found on the back of some road/grave/CX frame but also lately on light XC frames
• The caliper will also fit directly on Flatmount rear standard using a Ø140 disc.
• The Flatmount X2 caliper is designed for use with the Hope Tech 4, Tech 3, XCR Pro and Tech/Tech Evo levers only.
