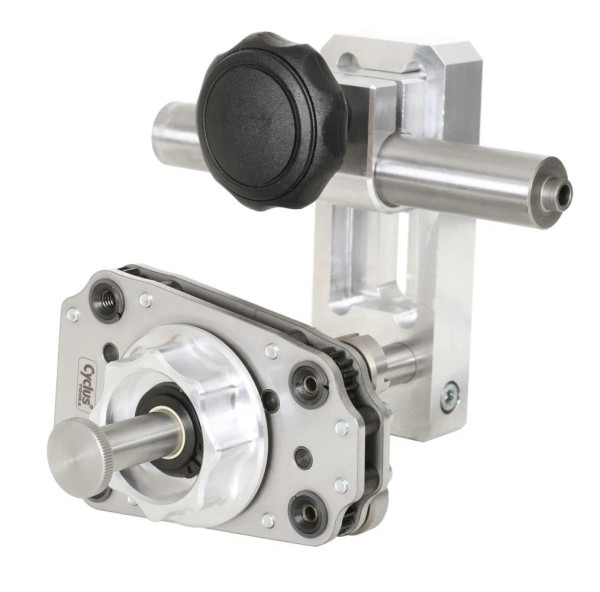

Dual Disc Mount Facing Tool Post & Flatmount

CYCLUS TOOLS dual disc mount facing tool IS2000, Postmount and Flat Mount

The dual disc mount facing tool can be used universally by simply changing the facer and clamping position. It mills 100% even, at a 90° angle. The exact 90 ° angle and the parallelism of the disc brake mounts are ensured by the fact that the facer is clamped only once and both disc brake mounts are milled simultaneously.

This is the only way to guarantee an absolutely identical milling depth, which is a prerequisite for the correct assembly and proper functioning of the disc brake. Before you clamp the face milling machine, you must check the parallelism of the dropouts, as only then a perfect milling of the disc brake mount is guaranteed.

The tool is delivered in the standard configuration for the quick release (QR) and 20 mm thru axle. NB: an adapter is needed to use the face milling tool with a 12 mm or 15 mm thru axle, that is Cyclus Tools art. 720962

This tool comes with a facer pair Flat Mount (spare parts): art. CYC 720958

Flat Mount Front for front disc brake / front brake caliper mount according to flat mount standard

Flat Mount Rear for rear-wheel disc brake / rear brake caliper mount according to flat mount standard

Post Mount for disc brake / caliper mount according to postmount standard

Diameter of the brake disc 140-203 mm (nominal size: 5-8 inches) International Standard 2000 (IS2000) for disc brake / caliper mount according to IS2000 standard Diameter of the brake disc 140-203 mm

Optional accessories:

• CYCLUS TOOLS milling cutter pair (Ø 12 mm, height 15 mm) Art. 720237



Part Number: 720236
Barcode: 8590831230629
Product Code: CYC 720236
