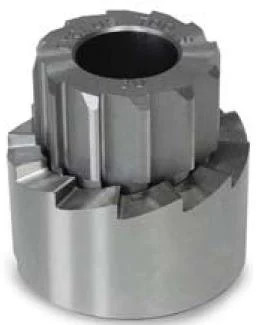

Head Tube Reamer 1 1/8" (33,8mm), Spare

"CYCLUS TOOLS head tube reamer EC 33.8 (33.8/15/90°), spare cutting head.

With the head tube reamer you can prepare head tubes with an inner diameter of 33.8 mm and a milling depth of 15 mm for the installation of an integrated headset. The angle of the bearing shell seats is 90 °. The milling cutter allows you to create planar and coaxial shell seats in the head tube.

The individual milling cutters were named according to the new naming system S.H.I.S.: (Standardized Headset Identification System). consists of the type of headset and the associated inside diameter of the head tube e.g. EC 34:

EC (External Cup), ZS (Zero Stack) and IS (Integrated Standard).

• Diameter: 33.8 mm / 1 1/8""

• Milling depth: 15 mm

• Milling angle: 90 °

• Tube profile: max. 4 mm

Includes:

• one individual cutter!

Note:

• For a complete tool you also need to order the holder for the head tube cutter (item number: 720211) and the cone guide (item no .: 720943).

• always only turn in clockwise direction.

• use suitable cutting oil when milling."

  Part Number: 720926
  Barcode: 8590831220309
  Product Code: CYC 720926
